Free Downdraft Dust Collection Cabinet Plans

This is an ideal first project! Pair this cabinet with the INCRA CleanSweep MagnaLock rings for the best performance. Looking for an already-finished solution? The INCRA CleanSweep Cabinet gets you up and running in minutes.

About the plans:

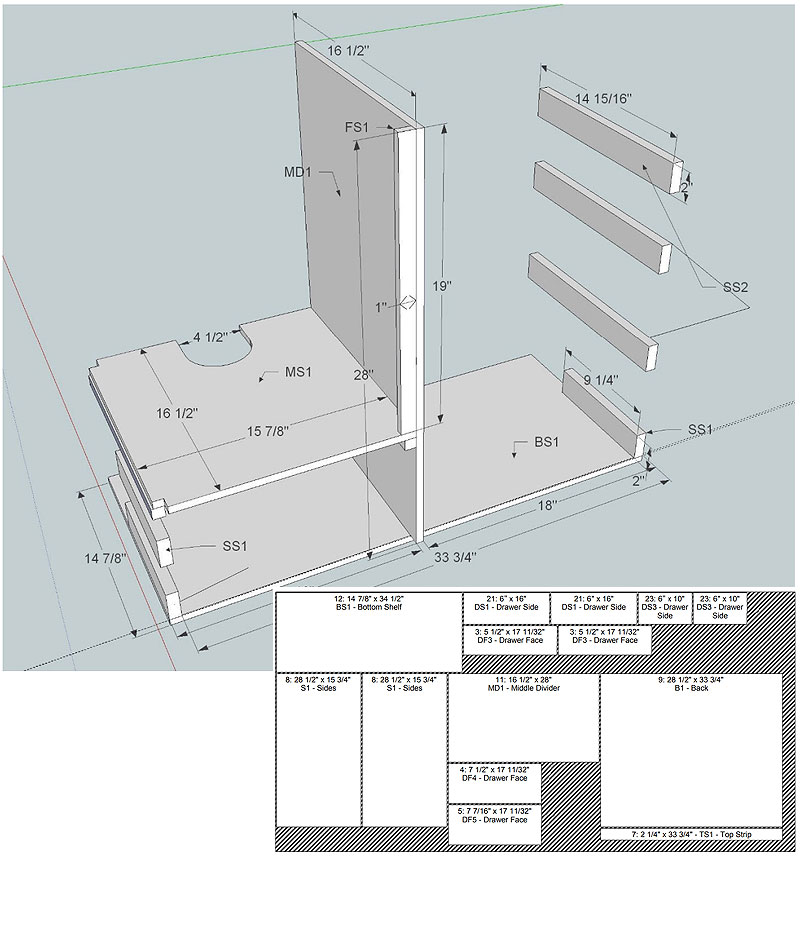

Router table guru and INCRA expert Mark Mueller from Indianapolis spent a little of his shop time to devise an easy to build and extremely effective dust collection system that will be perfect for your router table. The Pivot Door Downdraft uses common hardware store fasteners and fittings and is made with all wood construction. It's a great way to keep your shop cleaner, and the all wood construction provides even better noise suppression than the metal cabinets on the market.

The pivoting door design is great for wide open router access and won't SLAM shut when you forget to close the door before turning on your dust collector. For the cover photo shown above, Mark glued up a decorative panel to dress the design up a bit, but a solid plywood or MDF panel will work just fine. Treat your woodshop, your lungs and your ears to this wonderful project.


You'll never regret it!



All available free plans are stored in PDF format. You must have the FREE Adobe Acrobat Reader Sotware installed to view this manual in your browser. If you are not able to view the manual or you do not have Adobe Acrobat installed, you may download it here.
Use these decorative pieces to hold hot
pans and dishes off the surface of your
kitchen table or breakfast bar. They look
nice enough to leave out even when they
are not being used.


They are quite easy to make and there are
many ways to modify the design, The plans
call for enough wood to make two trivets, but
don’t be surprised if you find yourself making
more.

This is one of those projects you’ll want to
make for everyone on your gift list!
You can also buy other projects from -

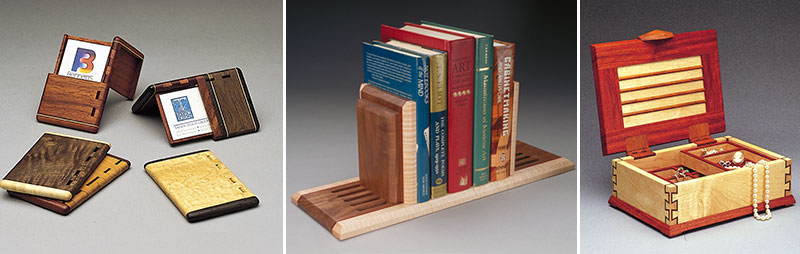

INCRA Projects & Techniques Book

Features step-by-step plans for more than a
dozen original INCRA projects, plus 11 special
techniques sections that will turn you into a
real INCRA Pro!
