TS-LS Combo - 3
TS-LS Combo - 3
Table saw is not included.
Alternative Views:

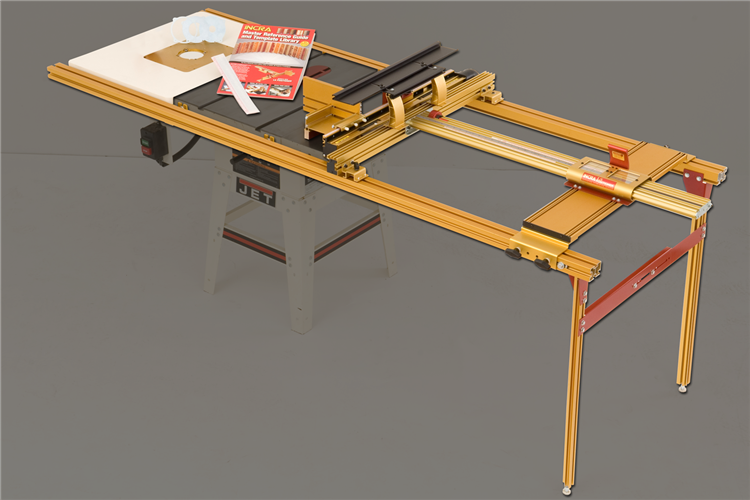

52" or 1320mm capacity TS-LS Joinery System with 28" x 21" Left Side Router Table (32" x 21" on XL version.) Choose from 1/32" imperial or 1mm metric positioning mechanics below. Made in U.S.A.

Please choose your MagnaLOCK Plate
for the router table.

List Price: $1,425.95
Our Price: $1,109.00
You save $316.95!

Estimated availability: Estimated 1 2 week production lead time due to high demand
Product Code: TSCOMBO-3

Choose metric or imperial


Choose regular or XL (selections MUST MATCH)

please select*:

please select*:

Choose a router mounting plate

combo-3 plate options*:

Description Extended Information

INCRA TS Combo #3

INCRA TS Combo #3- XL
INCRA Metric TS Combo #3
INCRA Metric TS Combo #3- XL

>> Click here to watch the TS-LS Joinery Package Upgrades Video (Part 1 of 2)
>> Click here to watch the TS-LS Joinery Package Upgrades Video (Part 2 of 2)

Now available in imperial or metric!

In TS Combo #3, the 52" or 1320mm capacity TS-LS rip fence system is ideal for larger shops or those with the frequent need for large panel capacities. In addition to including the same routing accessories found in the LS router table systems, TS Combo #3's 28" x 21" left-side router table (32" x 21" on XL version) allows you to work from the end of the table for better access around the router and allows great capacity between the fence and router bit. The left-side router table is also more than twice the size of the cast iron extension wing it replaces for more support when cross cutting long boards or ripping sheet goods.

Because the router table replaces the saw's original left-side extension wing, TS Combo #3 is not compatible with saws that have a motor housing protruding from the left side of the saw due to potential interference between the motor housing and the router itself. Download the "
Compatibility Chart" for more information.

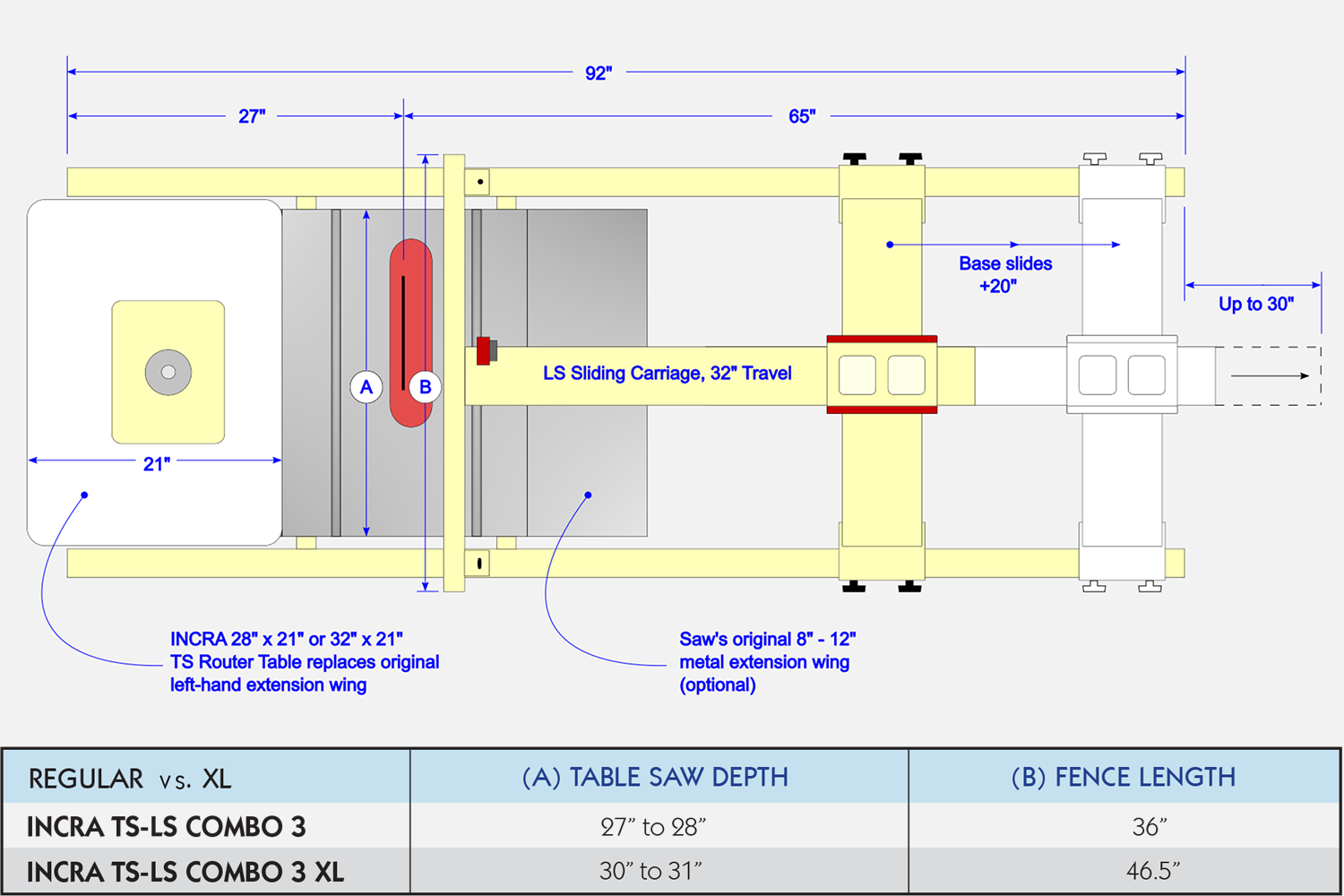

Should I order the "XL" version?
The standard TS Combo #3 fits traditionally-sized saws with tops that measure between 27" and 28" deep along the miter slot. The TS Combo #3 - XL fits saws with oversize tops that measure between 30" and 31"

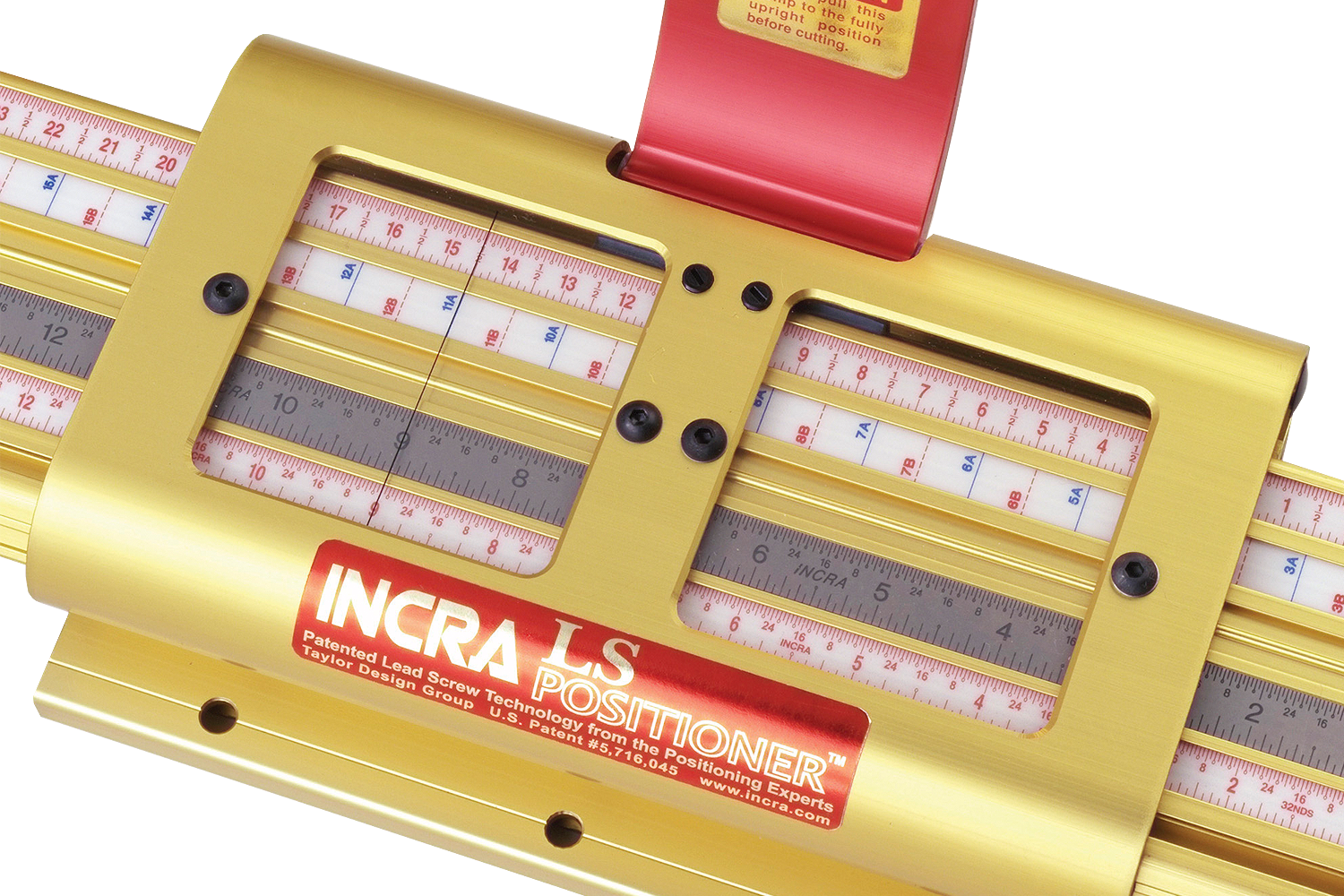

deep along the miter slot. The original Saw Stop Industrial and older right-tilt Grizzly 12" cabinet saws are two common examples. To span the greater front-to-rear depth of these saws, the XL Combo substitutes a deeper 32" x 21" router table, a longer 46.5" rip fence, and longer base support panel for the LS positioner in place of the standard-size components.

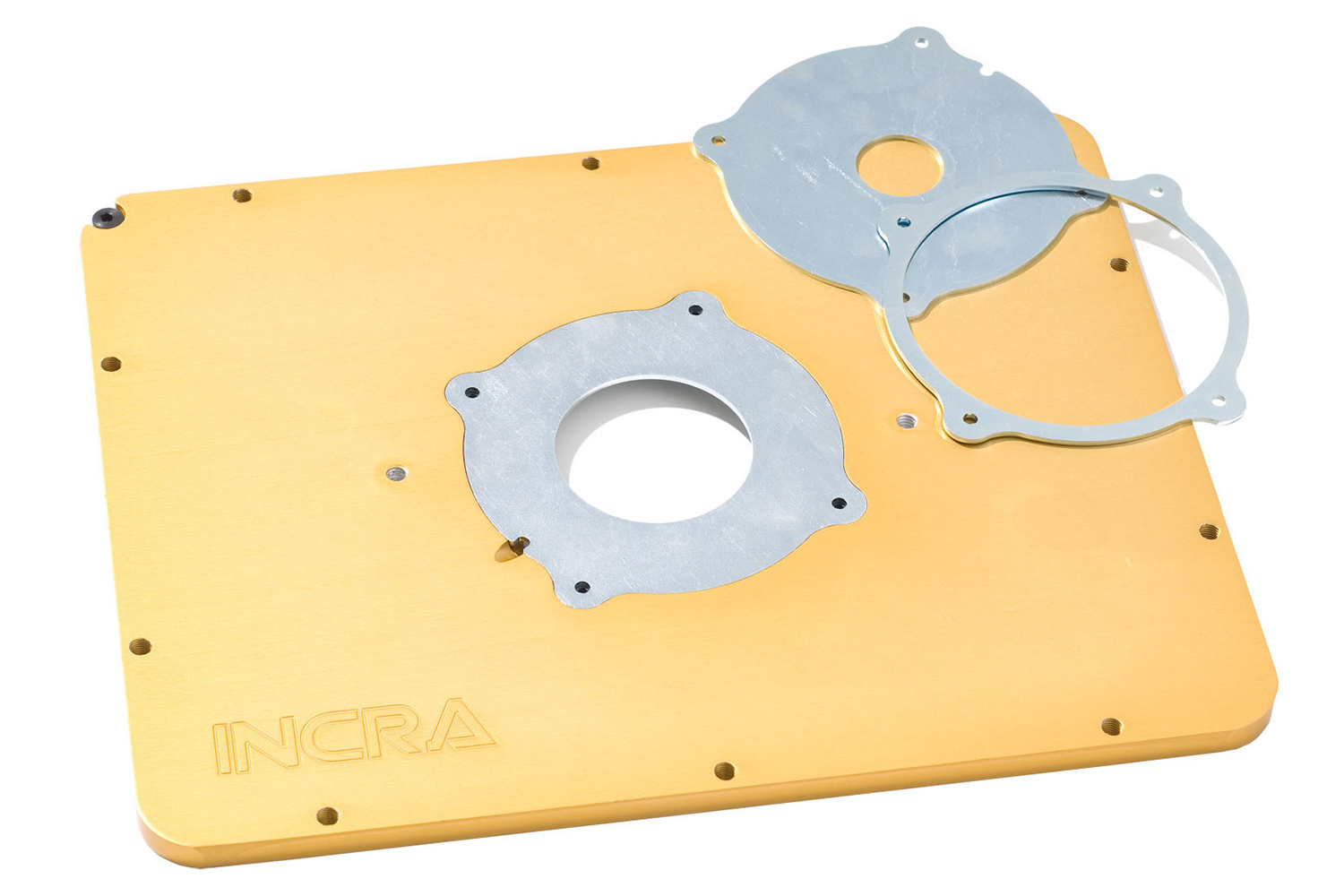

All INCRA Router Tables and Combos include the outstanding MagnaLOCK Aluminum Router Mounting Plate, but you can also upgrade to an INCRA Router Lift for the ultimate in convenience and accuracy.

Router plate size: 9-1/4" x 11-3/4" x 3/8". Please choose the MagnaLOCK Plate for your router table using the options selector or order without the router plate if you're purchasing a router lift.

Popular Accessories & Upgrades:
Improved dust collection for all of your router table work! Use the power of your shop's dust collection system to grab sawdust where it's produced on your router table! The CleanSweep cabinet attaches to the underside of laminated MDF or phenolic router tables from INCRA, Woodpeckers, JessEm, and many others. This must-have accessory is one of the easiest ways to improve the quality of your router table time!

Precise cross cutting is just as important as accurate ripping.We offer INCRA miter gauges & crosscutting sleds for every application and budget!

Upgrade your combo to the ultimate in convenience with an INCRA Router Lift!

If you're ordering a router lift, you can use the drop-down selector at the top of this page to remove the gold aluminum router plate from the combo for a $45 credit.

Top quality, American-made Whiteside router bits are the perfect complement to the accuracy of an INCRA system.For dovetails & box joints, check out the #605 or #610 sets .

A new router table setup deserves a fresh router.Check out our full selection.

Also check out these pages for more detailed information about the Combo's individual components:
- INCRA TS-LS Table Saw Fence - 52" Range
- 28" x 21" TS Router Table - Left Side of Blade
- 32" x 21" TS Router Table - Left Side of Blade

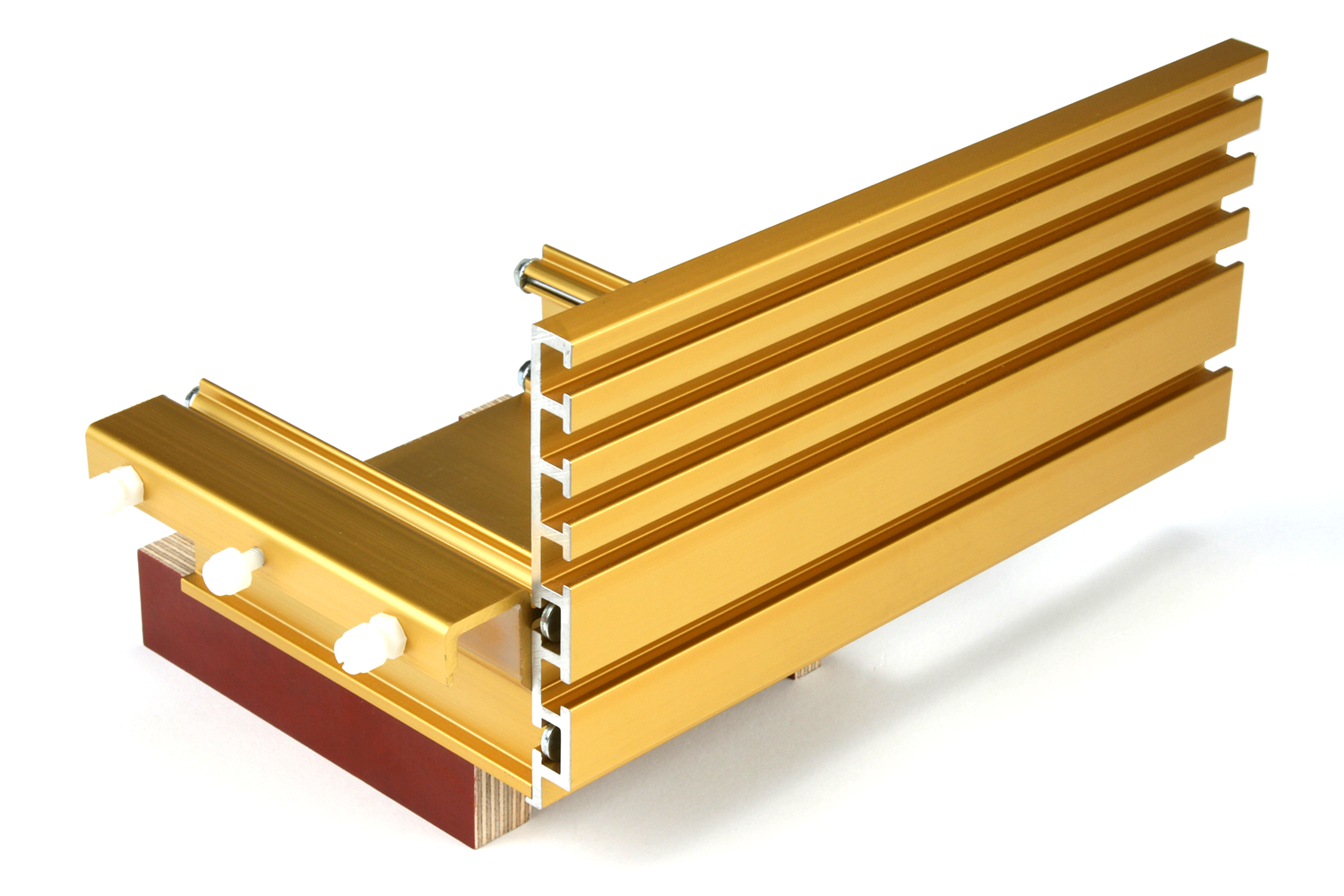

- Wonder Fence Joinery Package
