PARTS - INCRA Miter V27
PARTS - INCRA Miter V27

Alternative Views:

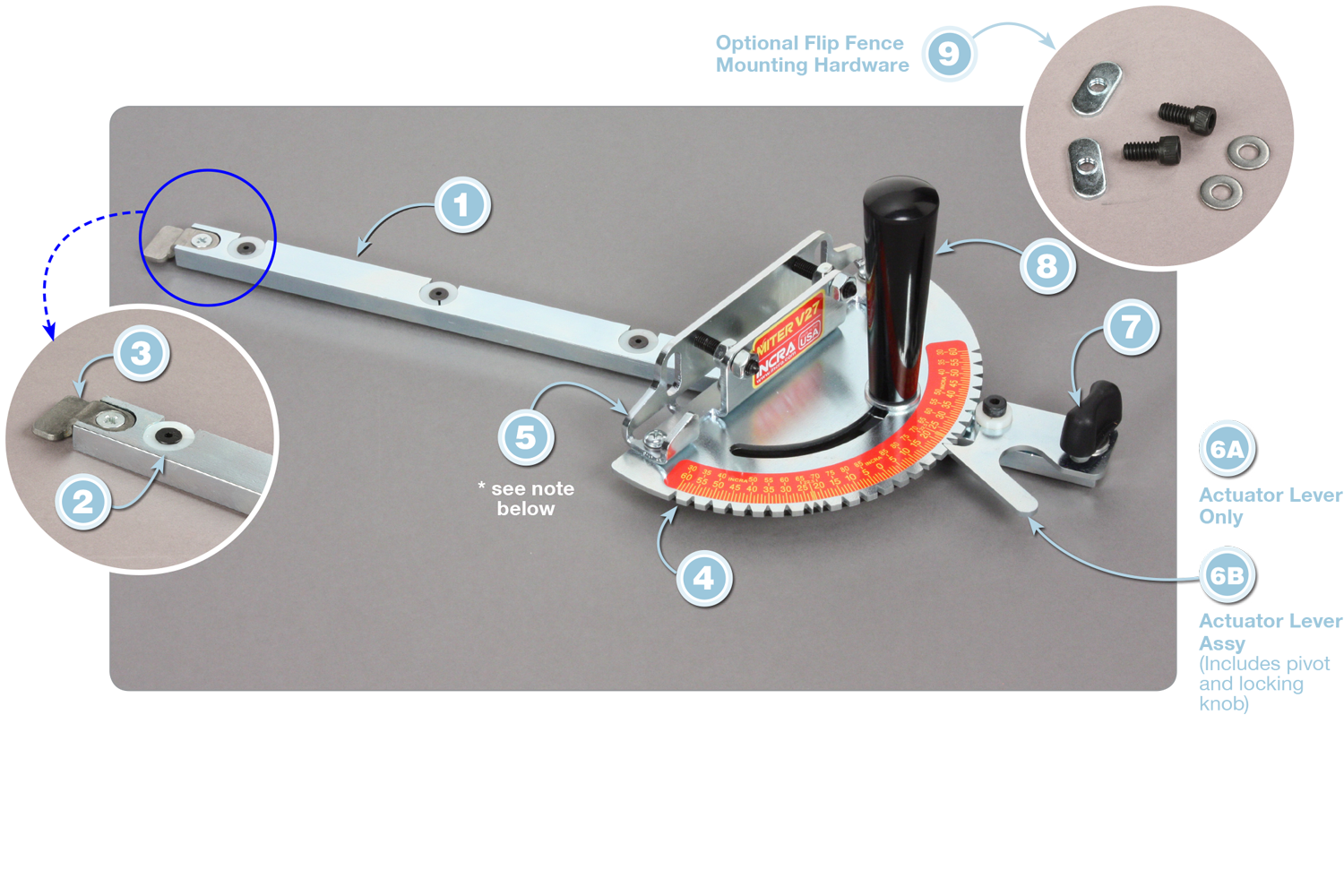

1. Identify part on the photo or downloadable pdf below and note the ID#.
2. Select the ID# from the drop down list under "Available Components" below.
3. Click "Add to Cart."
4. Click your browser's "back" button to select additional parts.

Price starting from: $2.14


Estimated availability: 1 – 2 week lead time
Product Code: PC-MITERV27

Available Components

Part Number*:



Description

PARTS - INCRA Miter V27

ID #
Part Number
Name of Component
Price

PV27-700100

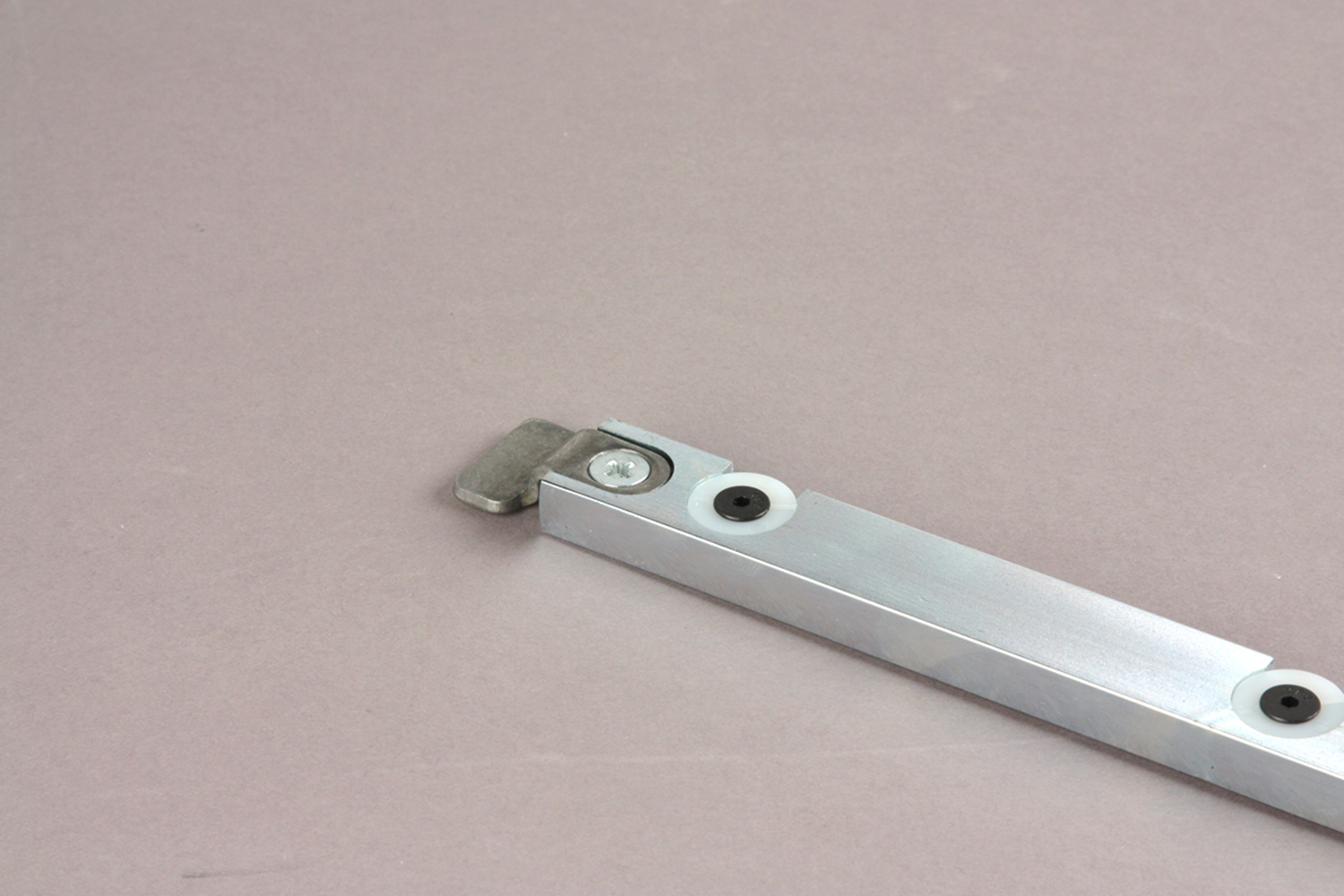

MV Miter Bar w/ Expansion Discs
$30.57

PV27-800100
Miter Bar Expansion Disc Set (4 discs, 4 screws)
$2.76
PFST-800600
T-Slot Retaining Clip w/ Screw
$4.07
PV27-700200
MV27 Protractor Top Plate w/ Pad & Pivot Fastener
$29.36
PV27-400101
MV27 Adjustable Fence Mounting Bracket w/ Mounting Fasteners
$25.47

PV27-400300
MV27 Actuator Lever Only
$6.96

PV27-700300
MV27 Actuator Lever Assembly
$11.26

PKNB-100300
Actuator Lever Locking Knob (3096N)
$2.14

PKNB-100600
MV Large Miter Clamping Knob
$9.52

PFST-800200
Flip Fence Mounting Hardware
$3.17

*Note: If you are upgrading from the older style “L” shaped bracket to the new adjustable bracket, please note that while it will work with your existing “ball” shaped clamping knob, the taller clamping knob (part ID# 8) pro-vides a more comfortable grip.
Don't see what you need? Call 1.888.804.6272 for assistance.
