JessEm Metric Wood Sabre Marking Gauge
JessEm Metric Wood Sabre Marking Gauge

Alternative Views:


New Metric version! Unique features, great ergonomics, and exceptional accuracy make the new JessEm Wood Sabre the new standard for marking gauges. 150mm range, micro adjustable to 0.1mm, aluminum and stainless steel construction. Made in Canada.

Our Price: $124.95
Sale Price: $109.95
You save $15.00!


Estimated availability: Usually Ships in 1 to 3 Business Days
Product Code: JE08803

Description

JessEm Metric Wood Sabre Marking Gauge
The new Wood Sabre is a wonderful refinement of the crude marking gauges that have been around for centuries, and it’s now available in Metric!

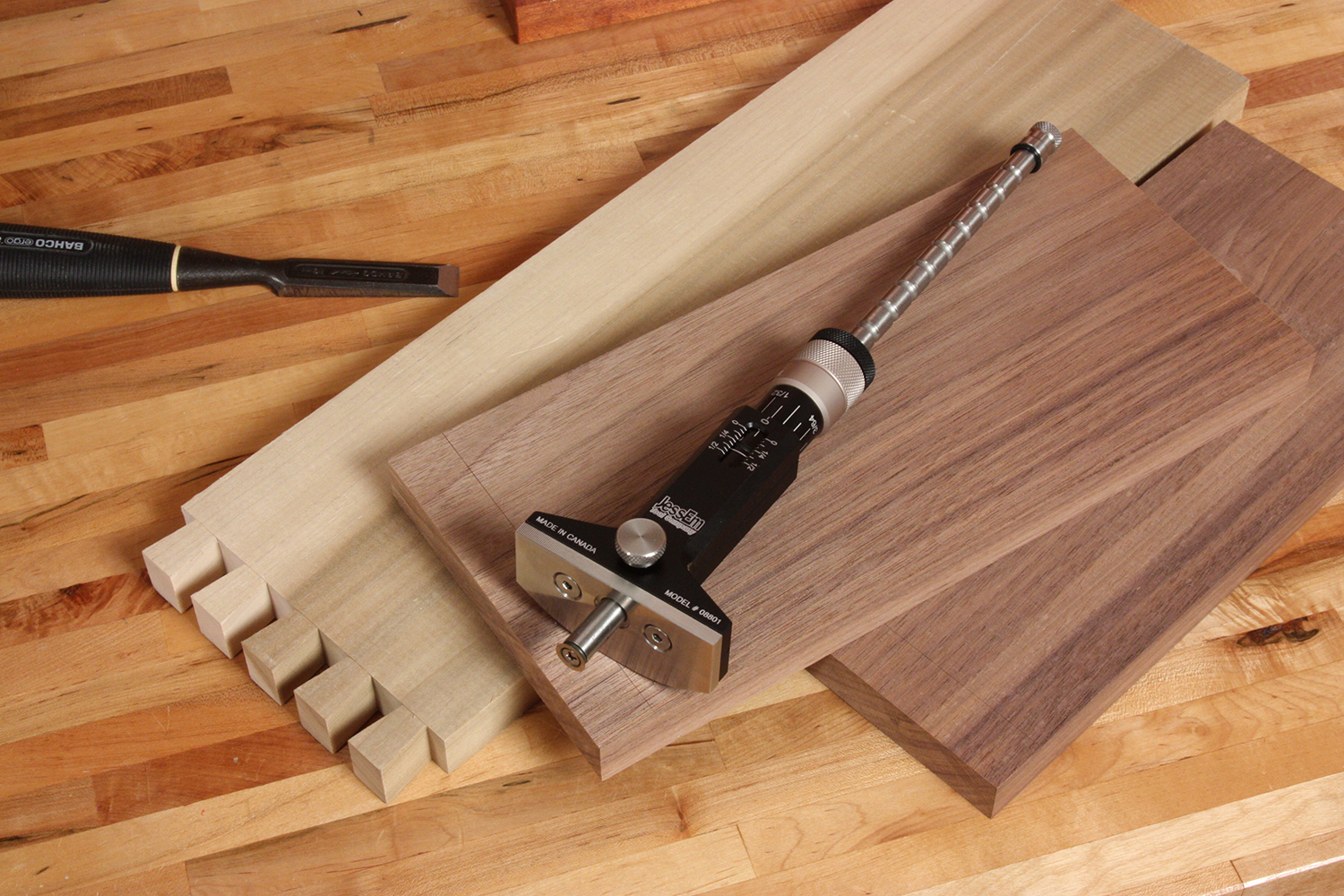

JessEm’s smart features and top-quality construction make the Sabre a joy to use for laying out mortise & tenon joints, dovetail shoulders, or any other situation where you need a fine line scribed a precise distance from the edge of a board.

Built from solid aluminum, the design’s wide body makes a nice grip for your whole hand, not just a few fingers. The stainless steel guide surface is nearly 75 mm wide for great stability against the edges of boards, even when the shaft is extended to its full 150 mm range.

Reaching the settings you want is fast, and there’s also a high degree of repeatability built into the mechanics: The shaft clicks into detents every 10mm as it slides through the body, and each turn of the micro adjust knob moves the shaft in or out exactly 2mm from those positions. There's a window on the body with a scale that shows the shaft position in 2mm increments, and the scale on the mike knob reads down to 0.1mm!

The pre-honed cutting wheel is A2 tool steel, 60 Rockwell hardness, and the wheel retracts fully below the guide surface for protection when you're not using it.

Includes a machined aluminum bracket for wall-mounted storage.



Made in Canada.
