INCRA Track System - 18" Track and Shop Stop
INCRA Track System - 18"

Alternative Views:


The INCRA Track System is a universal fence and stop system designed for maximum versatility in your woodworking shop. Includes INCRA Track & INCRA Shop Stop. Also available without stop to expand systems. Use the option selector below to choose between inches and metric.

Made in U.S.A.

Our Price: $64.95
Sale Price: $55.21
You save $9.74!


Estimated availability: Estimated 1 – 2 week production lead time due to high demand
Product Code: TRACKSYS18

Choose metric or imperial

options*:



Description

INCRA Track System - 18" Track & Shop Stop


Locate ANY cut on ANY machine EXACTLY where you want it.
The INCRA Track System is a universal fence and stop system designed for maximum versatility in your woodworking shop. These complete Track Systems include the INCRA Shop Stop.

The INCRA Track System is the ideal solution to any cutting operation that requires accuracy, repeatability, multiple stop positions, or just plain ease of use. Set up Track Systems on all of your favorite tools: Miter Gauge, Drill Press, Miter Saw, Radial Arm Saw, and an unlimited variety of shop-made jigs and fixtures.

The lengths of Track and the Shop Stop are each equipped with INCRA's patented sawtooth racks to position your work instantly and automatically in EXACT 1/32" or 1mm steps when used with the INCRA Shop Stop (sold separately) for true machine shop precision without measuring. It's also micro adjustable to fine-tune your position anywhere between fixed steps.

Maximum Versatility

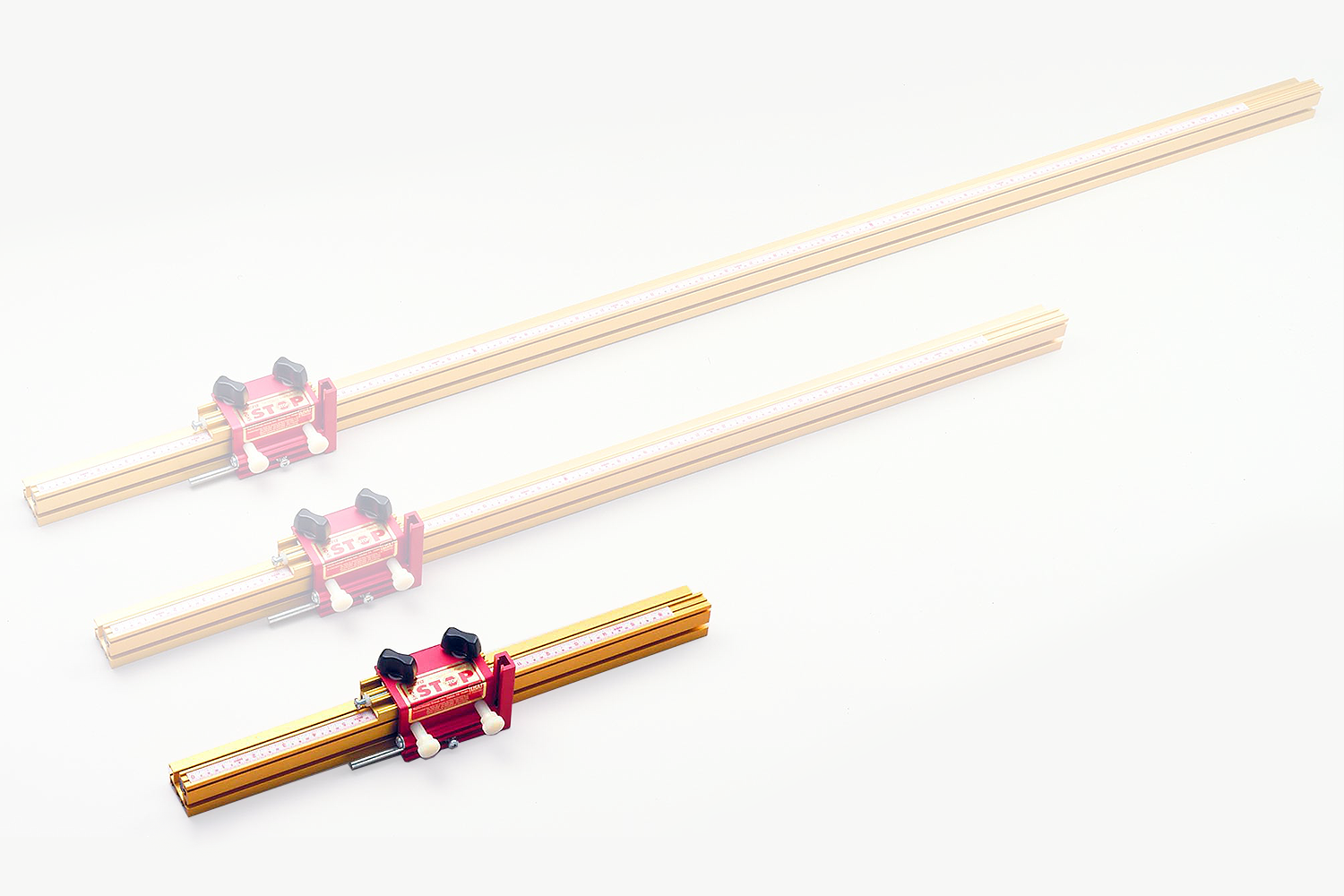

A sliding reference scale is included with each Track section. Tracks are available in 18", 36", and 52" standard lengths and in metric or inch graduations, and they can be butted end to end to create fences of any length.

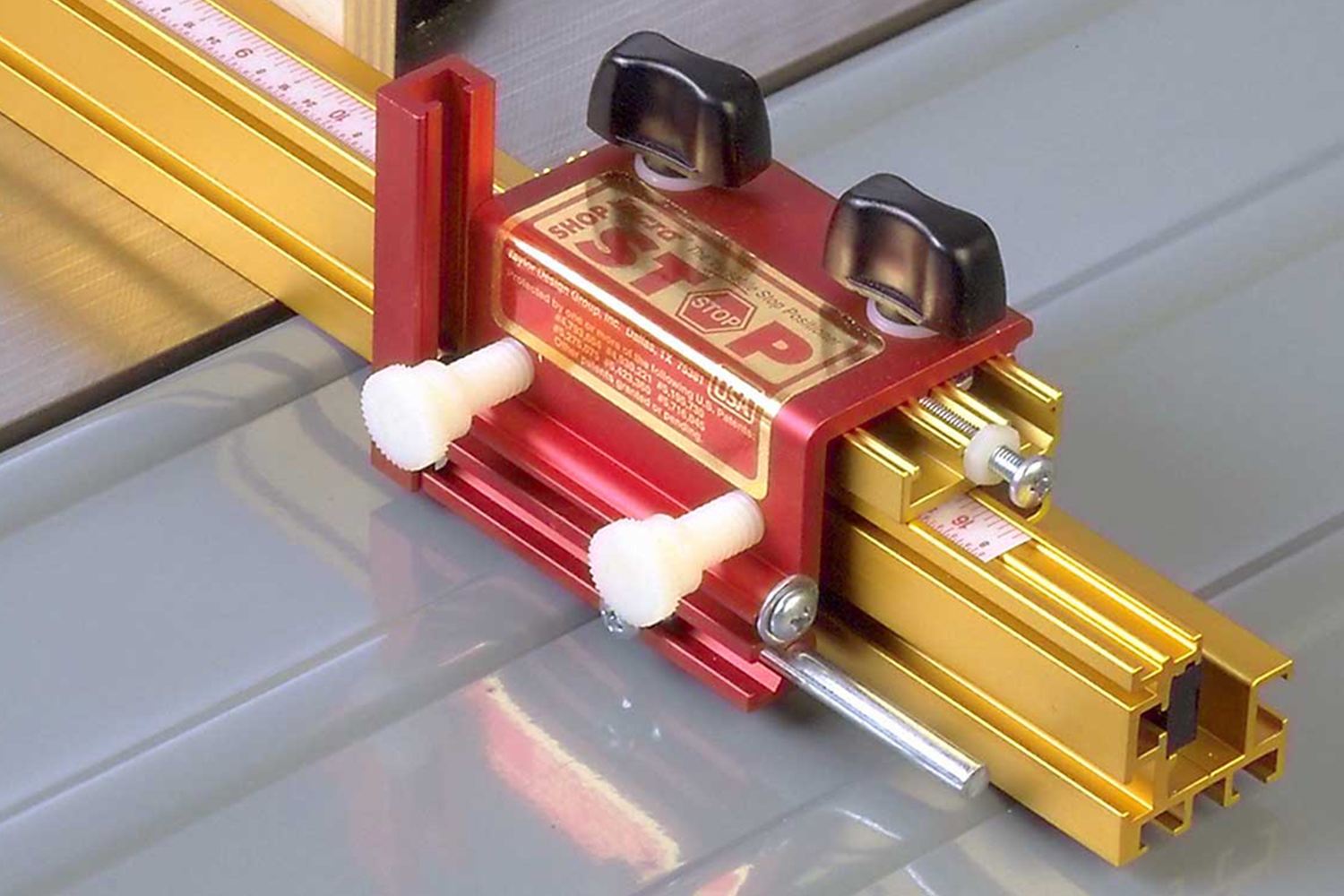

Multiple T-slots and through holes provide a means for quickly and easily attaching these rigid aluminum track sections to virtually any woodworking tool. Shop-made wooden sub fences, used to provide splinter-free zero clearance support or to extend fence length or height, slide directly into a T-slot along the Track's front face. The heart of the System, the INCRA Shop Stop, is expandable to accommodate any fence thickness up to 1-1/2". It's vertically adjustable to accommodate any fence height up to 3-1/2".

Optional scales available
INCRA Track is shipped with scales that have the zero on the right, which is appropriate for a fence on the left side of a miter saw, table saw, or drill press. For scales that read the opposite direction, the original scales can simply be turned upside down, or you can order a wide selection of optional scales for special applications from this page.


Easy Installation.
INCRA Track attaches directly to just about any horizontal or vertical surface, so it will easily mount to all of your favorite tools.


Miter Gauge.
Improve the performance of any miter gauge, and put an end to trial and error cuts forever. You'll find your crosscuts not only accurate, but repeatable as well.


Zero Clearance Fence.

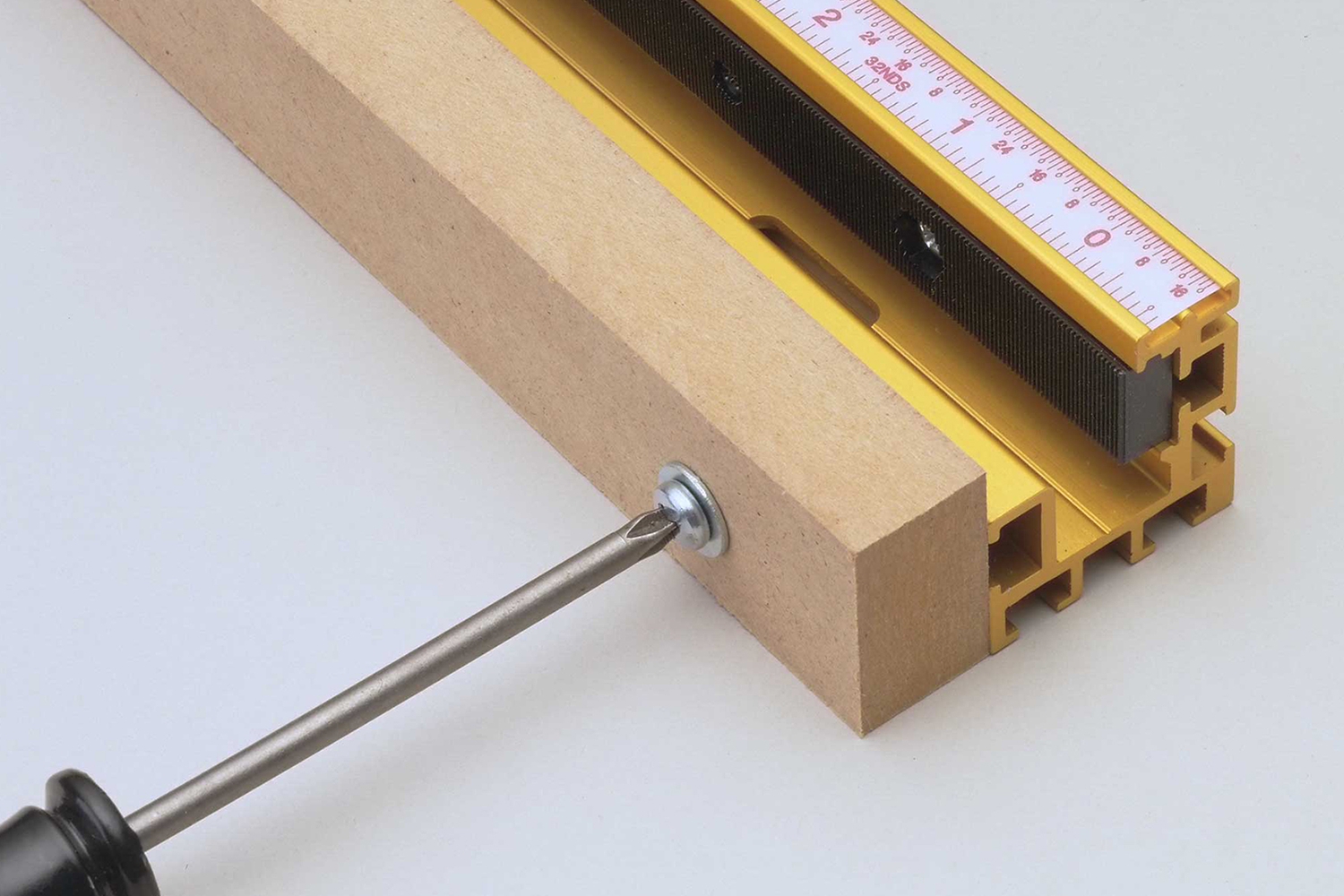

A shop-made wooden subfence slides directly onto the Track's front face to provide splinter-free zero clearance support for all of your cuts.


Jigs & Fixtures.
We call INCRA Track the Jig-Makers Jig! Now you can add INCRA's famous precision and repeatability to all of those one-of-a-kind shop-made jigs and fixtures that are so useful for specialty operations and production work. The crosscut sled shown here is just one example.


Miter Saw.
Add INCRA Track's incremental precision to both sides of the blade, and throw out your tape measure. This is what every Miter Saw needs! Track sections can be cascaded for unlimited crosscutting capacity.


Drill Press.
Work at your drill press is quicker, easier, and far more accurate with the INCRA Track System. You'll find it particularly useful for holes such as counterbores which require more than one bit and multiple synchronized drilling operations.


Radial Arm Saw.
Add a precision incremental fence to your Radial Arm Saw. Track sections can be mounted end-to-end for unlimited crosscut capacity. Works on both sides of the blade.
