INCRA Miter 5000 (Standard & Shopsmith)
INCRA Miter 5000

Alternative Views:


The Miter 5000 blends the incremental angle control features of the Miter 3000SE with a very special 3-panel Sled for the ultimate crosscutting workstation for the table saw. 20”-25” panel cutting capacity on most saws plus T-tracks and a heavy duty hold down clamp for controlling small parts. Made in U.S.A.

Use the option selector below to choose between inches & metric plus standard 3/4” or Shopsmith miter bar sizes.

List Price: $344.95
Our Price: $329.95
You save $15.00!

Estimated availability: Est lead time 3- 4 weeks (standard), 5 - 7 weeks (Shopsmith)
Product Code: MITER5000

Choose miter bar size and metric or imperial scale

options*:



Description Extended Information


INCRA Miter 5000 Sled (Standard & Shopsmith)
Available for standard miter slots and now also for Shopsmith machines!




You won’t be into woodworking long before realizing that you’re going to either use a sled or always make small things. The Miter 5000 integrates the incremental angle control features of the
Miter 3000SE with a unique sled system to create a workstation with the capacity to handle big projects and accuracy & repeatability far beyond shop-made sleds.

Miter gauges don’t offer control or accuracy when pulled beyond the front of the saw, while the 5000 can crosscut 23" x 34" plywood cabinet sides with ease on most full size 10" table saws (and 18”-20” wide boards on Shopsmith machines).

The 36" to 64" telescoping IncraLOCK Fence and Flip Shop Stop have plenty of range for long boards. Sleds allow better control because the lumber isn’t sliding on the saw’s top, and they’re safer for small parts, too – the 5000 has aluminum T-tracks embedded in the MDF platform to secure the included heavy duty Build-It hold-down clamp.

The sled can be set up on either the left side or right side of the blade, and a renewable Drop Panel provides zero clearance tearout control on both sides of the blade.



Compatibility:

Miter slot size:
- The miter bar's adjustment range accommodates actual slot widths between 0.740" and 0.765" and is designed for 3/4" wide x 3/8" deep square-sided miter slots, with or without a 15/16" T-slot at the bottom.

- The Shopsmith version fits only the 0.719" x 5/16" slot size and is not compatible with
the Shopsmith 10ER models.

Miter slot spacing:
The max distance between the miter slots is 12-1/2" center-to-center.

Table size:
For adequate support, the Miter 5000 requires a minimum of 13" from the side of the blade to either the left or right edges of the saw (sled can be installed on either side of the blade).



INCRA Flip Shop Stop
The Miter 5000 includes our top-of-the-line Flip Shop Stop for the ultimate in repeatable accuracy. The dual-arm design is exceptionally rigid and the arms can be separated and operated independently. The expandable body even allows the use of a wooden zero-clearance sub fence (hardware included!).

GlideLOCK Miter Bar
Six expansion disks adjust both sides of the bar for ZERO side play, anti-friction travel on all table saws with standard miter gauge channels, including Delta, Craftsman, imports, etc. This means that all of INCRA's incredible precision will actually show up in your work because the bar CAN'T wiggle around in the miter slot. The Miter 5000's adjustable miter bar will fit square-sided miter slots measuring 3/4" wide, 3/8" deep, and with or without a 15/16" T-slot at the bottom. The miter bar's adjustment range accommodates actual slot widths between 0.740" and 0.765".

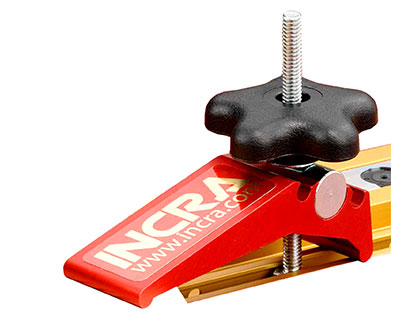

INCRA Hold Down Clamp
Included with every Miter 5000 is this simple and incredibly useful Hold Down Clamp which locks your workpiece onto the sled for maximum accuracy and the cleanest cuts possible. It only takes seconds to use and provides the rigidity needed for world class results
.


AngleLOCK Indexing
Precision angle indexing teeth are laser cut in solid steel to lock in 364 positive angle stops in 1/2°, 1° or 5° increments over a full 180° range. it's also continuously adjustable between 1/2° steps
.
